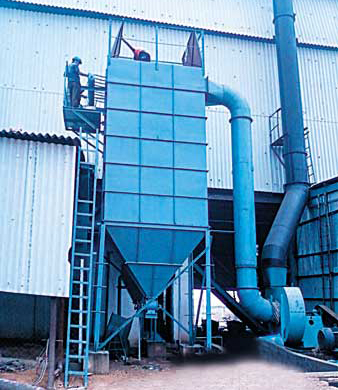

Pulse Jet Bag Filter System

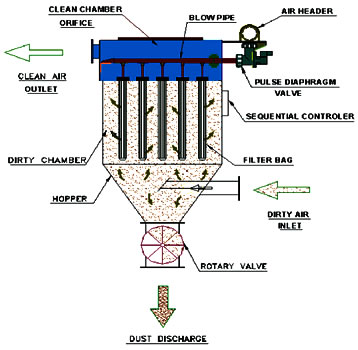

A filter-cleaning apparatus utilizes pulsed air to remove matter collected on a first surface of a filter. Reverse flow loosens the material which is collected in a hopper on the upstream side of the filter. The collected matter may then be combusted in the hopper so that the amount of material collected is minimized. The pulses are directed at the filter with a controlled shape and time to optimize reverse pulsing. Pulsing occurs while the thermal exhaust flow continues so that operation of the engine is not interrupted. A number of valves may be utilized to clean one or more filters.

Manufactures and Supplies of Pulse Jet Bag Filter Systems with below feature :-

• High Collecting Efficiency
• Low pressure drop
• Economically Designed
• Economically Designed
• Low Maintenance and Operative Cost

Close

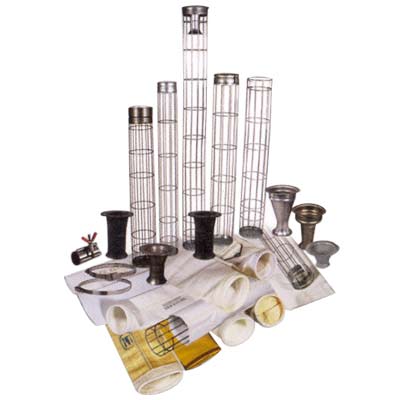

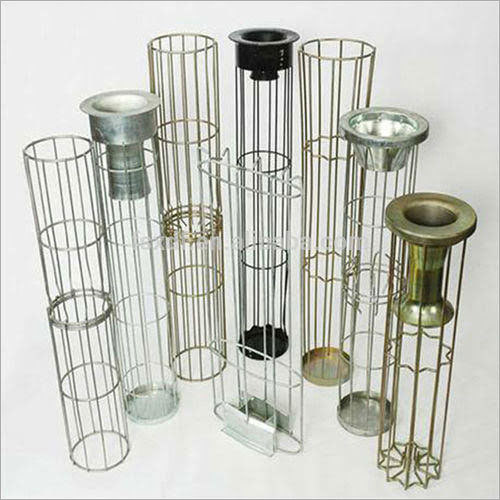

Bag Supporting Cages and Ventury

Pulse-jet style bughouses are designed to utilize fabric filter bags with internal support structures commonly referred to as cages. Cages provide a means of holding the filter bag open during the particulate collection cycle. Cages must be strong to withstand the pressure from the filter bag exerted during the particulate collection cycle.

provides a wide range of configurations to best fulfill your needs in MS, GI, SS304, SS316 and SS316L with 8, 10, 12, 16 and 20 vertical wires and any spacing of horizontal rings made by 3mm, 4mm and 5mm wire diameter.

We can also supply Ventury made of MS, Aluminium, Cast Iron and Cast Alumimium in any type of design

Close

Pleated Filter Bags

Earth-Enviro, supplies Deep Pleated filter bags that increase effective filter area significantly over conventional pleated synthetic media. Deeper pleats are allowable media which prevents collapsing of pleats under operating pressure. This unique design uses staggered dimpling on the filtering side which, unlike other dimpling patterns, provides unrestricted air flow and pulse cleaning at the extreme ends of the pleats..

Filter media available in spunbond polyester and polypropylene, PTFE membrane, Aramid, and antistatic (aluminized) media.

Close

Solenoid Pulse Valve and Sequential Timer

Pulse-jet cleaning bag Filter system utilise diaphragm valves to pass compressed air from the air supply lines and manifold into the blow piped within the bag filter. These diaphragm valves are usually actuated with electrically operated pilot solenoids.

Solenoid Valves are available in ¾” to 2” suitable for 24V DC and 110V/230V AC

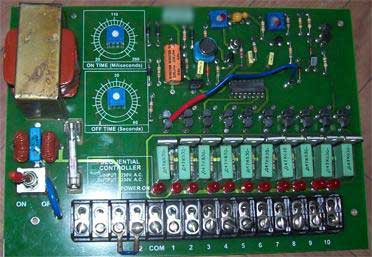

Sequential timer controls are important for effective filter bag cleaning. Excessive differential pressure, increased fan power consumption, reduced production process air flow, and decreased filter bag life can result if timer controls are not functioning properly. Sequential timers are available from 3 to 40 channels.

The main purpose of a diaphragm solenoid valve is to control the flow of liquids and gases. Diaphragm solenoid valves have a rubber diaphragm that moves up and down within the body of the valve, causing opening and closing against a hard seat.

Close

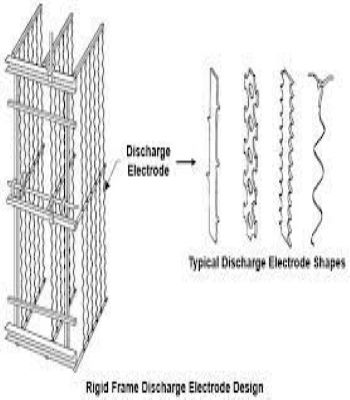

Discharge Electrode / Emitting Spring

The Discharge electrode is the heart of any Electrostatic precipitator and its characteristics are the key to the ESP performance, its annealed copper nails ensure sharp corona points over along time. Most advantage of D.E. is higher corona generation and lower corona onset voltage.

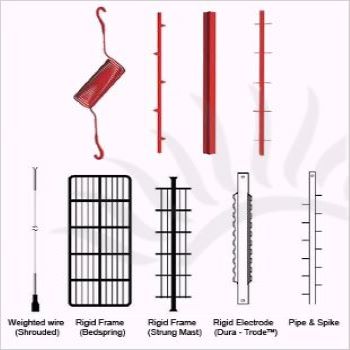

EE, can fulfill your discharge electrode needs for most designed Electrostatic Precipitators. We can supply you with the material, style and size to fit the requirements of your existing precipitation system in Straight round Wire, barbed discharge wire, rigid masts, rigid frames, Rigid Spiked Pipes and Spiral wire.

Supplies discharge electrodes suitable for all type of ESP like Thermax, Alstom, ACC, VT Corp, ELS-Elex etc.

Close

Collectiog Plates

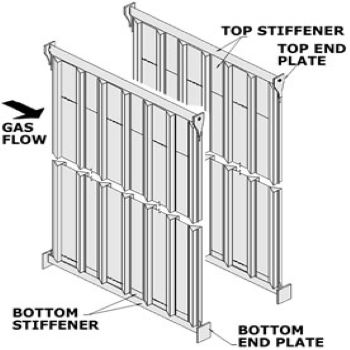

A typical collecting plate used in electrostatic precipitators.

1. Collecting plates are made from rolled steel, and are welded together in the factory to reduce the installation time at the jobsite. Each plate contains electrodes which are positively charged. When the particulate gas enters the electrostatic precipitator and is struck with a negative charge electrode, the positively charged plates act as a magnet and pull the particulate gas to them.

2. The plates have both top and bottom stiffeners and plates which allow better mounting and the ability to deal with more abuse from the rappers. The plates are arranged to form a series of gas passages

3. There can be anywhere from 30-35 passages inside the electrostatic precipitator shell. The plates are placed parallel to the incoming particulate gas. MFP supplies collecting plates suitable for all type of ESP like Thermax, Alstom, ACC, VT Corp, ELS-Elex etc.

Close

Migi Rapper Coil

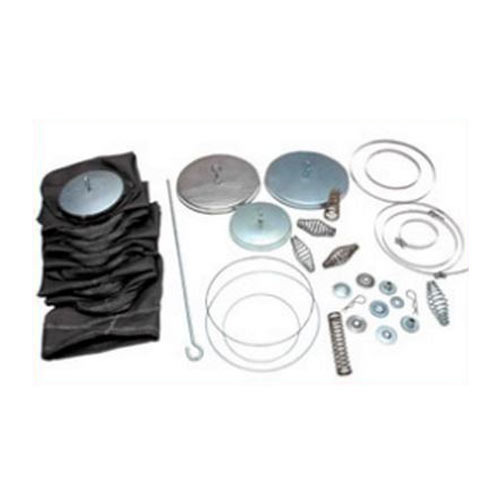

Earth Enviro,supplies, designs and sizes of J-Hooks, D-caps and spring assemblies, SS Clamp for all designs of RABH bags.

We offer 100% polyester air-slide fabrics. Airslide fabric (hose) is used for material handling system and pneumatic conveying and is the ideal product for unloading or loading powder.We can supply following sizes:

Thickness: 4mm, 4.5mm 5.0mm.5.5mm,6.0mm.7.0mm.8.0mm Width: 40mm -2100mm :
